Factor 55 Flatlink Xtv Winch Shackle Black

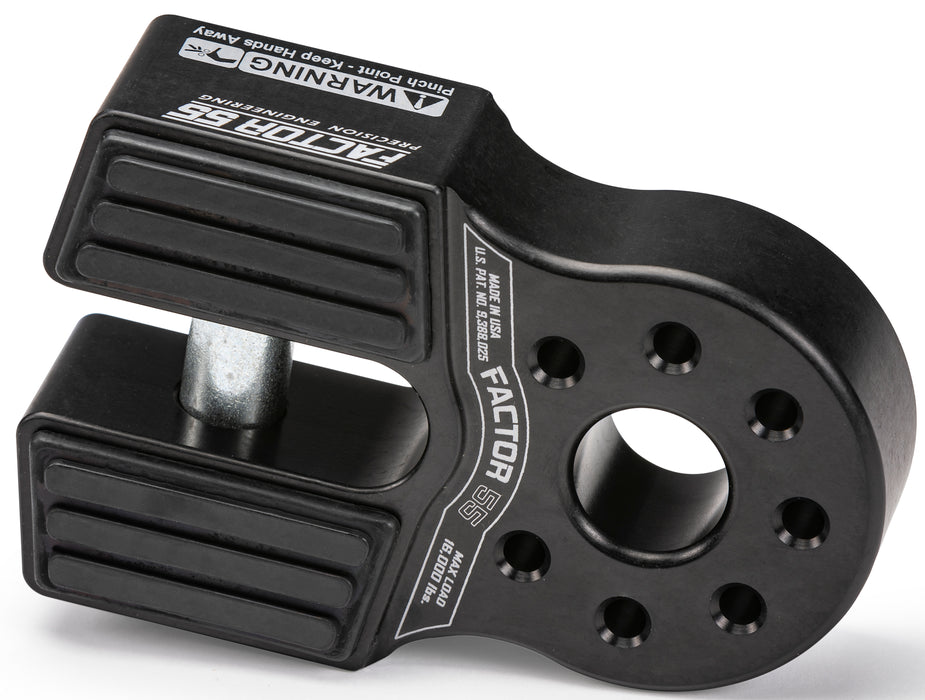

The Factor 55 FlatLink XTV is a safer, more secure alternative to conventional winch hooks for UTVs and ATVs. Designed for Closed System Winching®, it replaces traditional hooks with a precision-machined billet aluminum body that accommodates common screw pin shackles (½ – ⅝ inch) and prevents recovery strap ends from slipping free. Compatible with synthetic ropes and steel cables up to 5/16", it offers strength, reliability, and sleek stowage against Hawse or roller fairleads. The FlatLink XTV installs in minutes, requiring no splicing.
Built from 6000 series billet aluminum and 6Al-4V titanium, and featuring EPDM rubber guards to protect your fairlead, the FlatLink XTV is built for serious recovery work and long-lasting performance—Made in the USA.
Specifications
- Weight: 12.7 oz
- Material: 6000 Series Billet Aluminum & 6Al-4V Titanium
- Finish: Anodized and Powder Coated
- Compatible with: Steel cables & synthetic ropes up to 5/16"
- Shackle Compatibility: Standard ½” – ⅝” screw pin shackles; also fits pin ends of ¾” shackles
- Max Load Rating: 8,000 lbs
- Ultimate Failure Load: 28,000+ lbs
- Rubber Guards: EPDM, protects alloy fairleads, 4-barbed tip retention
- Pin Retention: 7/16" titanium double shear pin with internal snap ring
- Installation: No splicing required; installs in minutes
- U.S. Utility Patent No. 9,388,025 (foreign patents pending)
- Made in the USA
